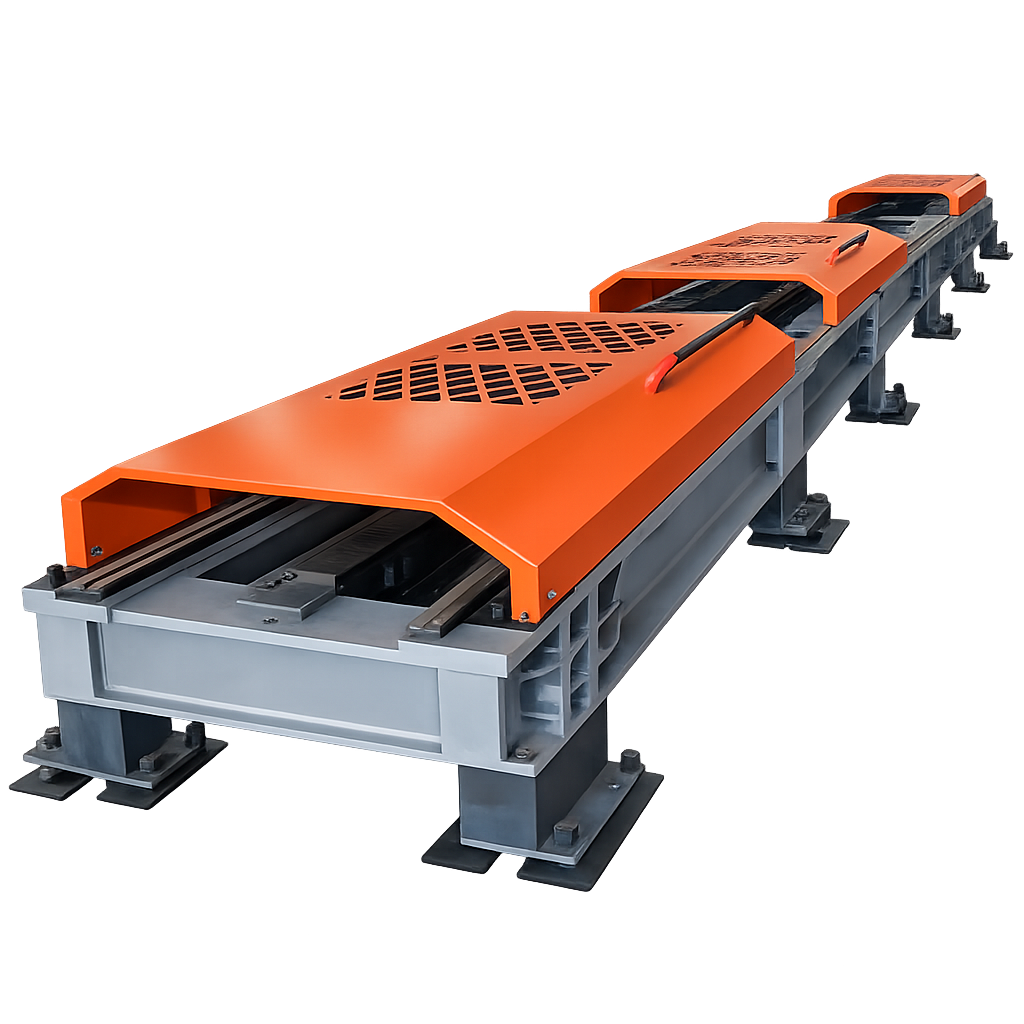

Computer-Controlled Horizontal Tensile Testing Machine
Horizontal Testing Machine is engineered for accurate tensile testing of long specimens such as cables, chains, rods, and structural components.
Every test matters
we provide advanced universal testing machines
From R&D to quality control, from aerospace to academia, from high strength steels to elastomers, no matter the zoner, HANSA produces and supplies high quality testing equipment to meet modern day quality demands.
Transforming Material Testing Technologies to meet modern day needs
This 1000kN computer-controlled horizontal tensile testing machine is a high precision instrument for tensile tests on conductors, steel wire ropes, electric power fittings, safety belts, porcelain insulators, composite insulators, fasteners, structural parts, and other specimens.
With corresponding fixtures, the machine can perform static mechanical property tests and analysis on metallic and non-metallic (including composite) materials, including tension, compression, bending, shearing, peeling, tearing, load holding, and cyclic loading.
It features three closed-loop control modes: force, strain, and displacement. It automatically calculates the maximum test force, breaking force, upper and lower yield points, yield strength, tensile strength, and can determine elongation stress, elongation, elastic modulus, and other parameters as required.
It also performs specified elongation stress and specified stress elongation tests, and can
print test reports with curves and all parameters at any time.
Functions: Overload protection, emergency stop, automatic data acquisition & calculation,
online display, storage, deletion, printing, graphing, auto-scaling, test report generation
Calculations: Initial modulus, final modulus, tensile strength, upper/lower yield strength,
elongation at max. force, etc.
Safety: Limit protection, overload protection, buckling prevention device
Reliability: Stable performance, failure rate ≤0.5%
Ambient Operation: 0°C–45°C, humidity 60%–90%
Continuous Operation: ≥30 hours
Maintainability: Good serviceability, easy maintenance
Fixed End Tailstock: Manual fine-tuning mechanism for easy specimen loading/unloading
Structural Analysis: Mechanical analysis of jaw housing and overall frame to ensure stability and rigidityStructural Analysis: Mechanical analysis of jaw housing and overall frame to ensure stability and rigidityStructural Analysis: Mechanical analysis of jaw housing and overall frame to ensure stability and rigidity
Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | HTHH10, HTHH30, HTHH50, HTHH100, HTHH150, HTHH200 |
| Maximum Test Force | 100 – 2000 kN |
| Force Measuring Range | 1% – 100% FS |
| Relative Error of Force Indication | ±1% |
| Force Resolution | 1/500000 of Full Scale |
| Max. Piston Stroke | 1500 mm |
| Displacement Measuring Range | 0 – 1500 mm |
| Relative Error of Displacement Indication | ±1% or 0.01 mm |
| Loading Speed | 0.5 – 100 mm/min |
| No-load Speed | 0.5 – 200 mm/min |
| Distance Between Two Tensile Fixtures | 0 – 10,000 mm |
| Pin Adjustment Spacing | 600 mm |
| Pin Structure | Manual |
| Crosshead Travel | Automatic Adjustment, 500 – 1000 mm |
| Speed Control | Continuous, Constant Force Loading |
| Constant Force (Load Holding) Accuracy | ±1% F.S. |
| Control Mode | Electro-Hydraulic Servo Control |
| Tension Power | Hydraulic |
Important FAQs – Horizontal Testing Machine
What is a Horizontal Testing Machine?
What materials can be tested using a Horizontal Testing Machine?
What are the advantages of a Horizontal Testing Machine?
What is the testing capacity of a Horizontal Testing Machine?
Does the machine support computerized testing?
Which testing standards can be followed?
