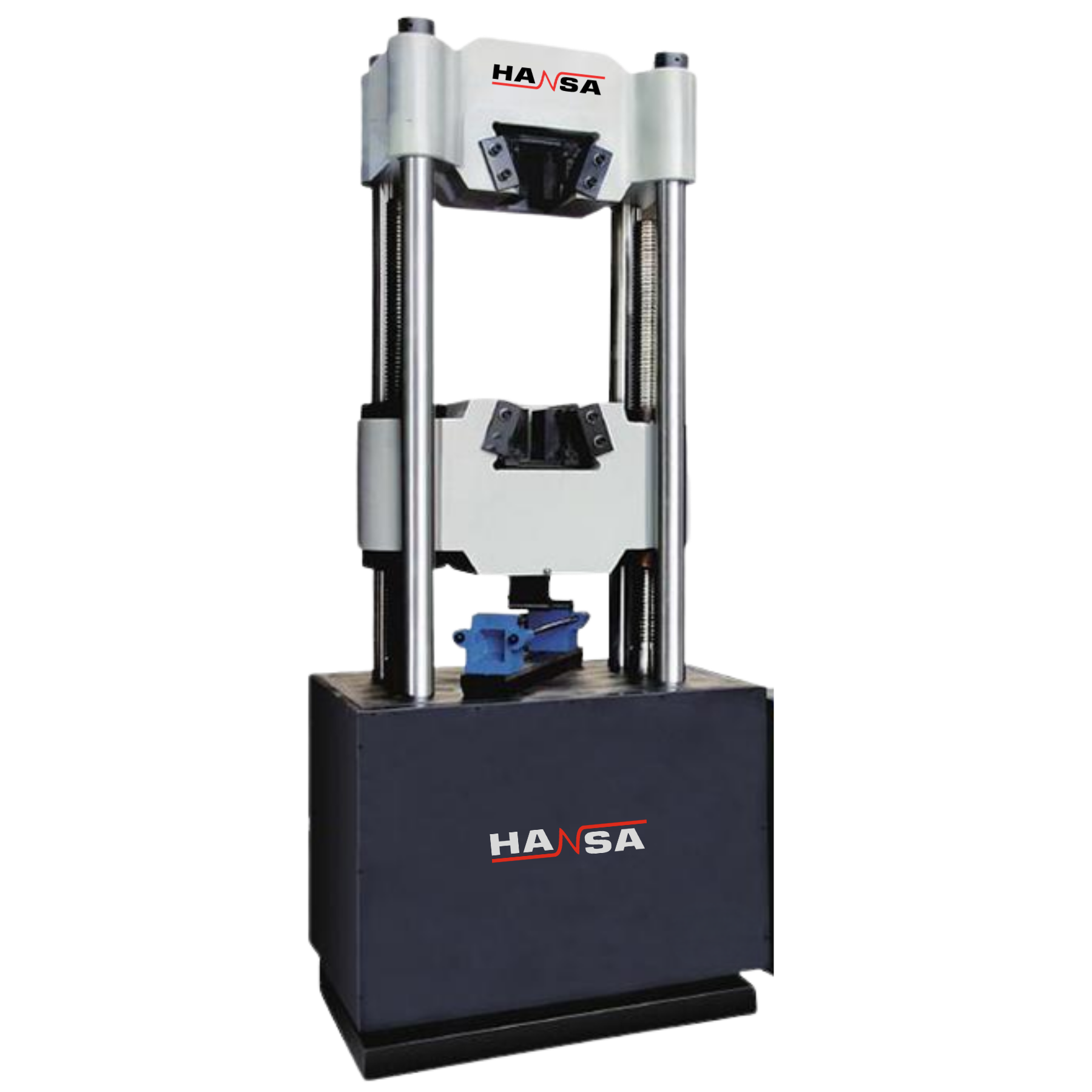

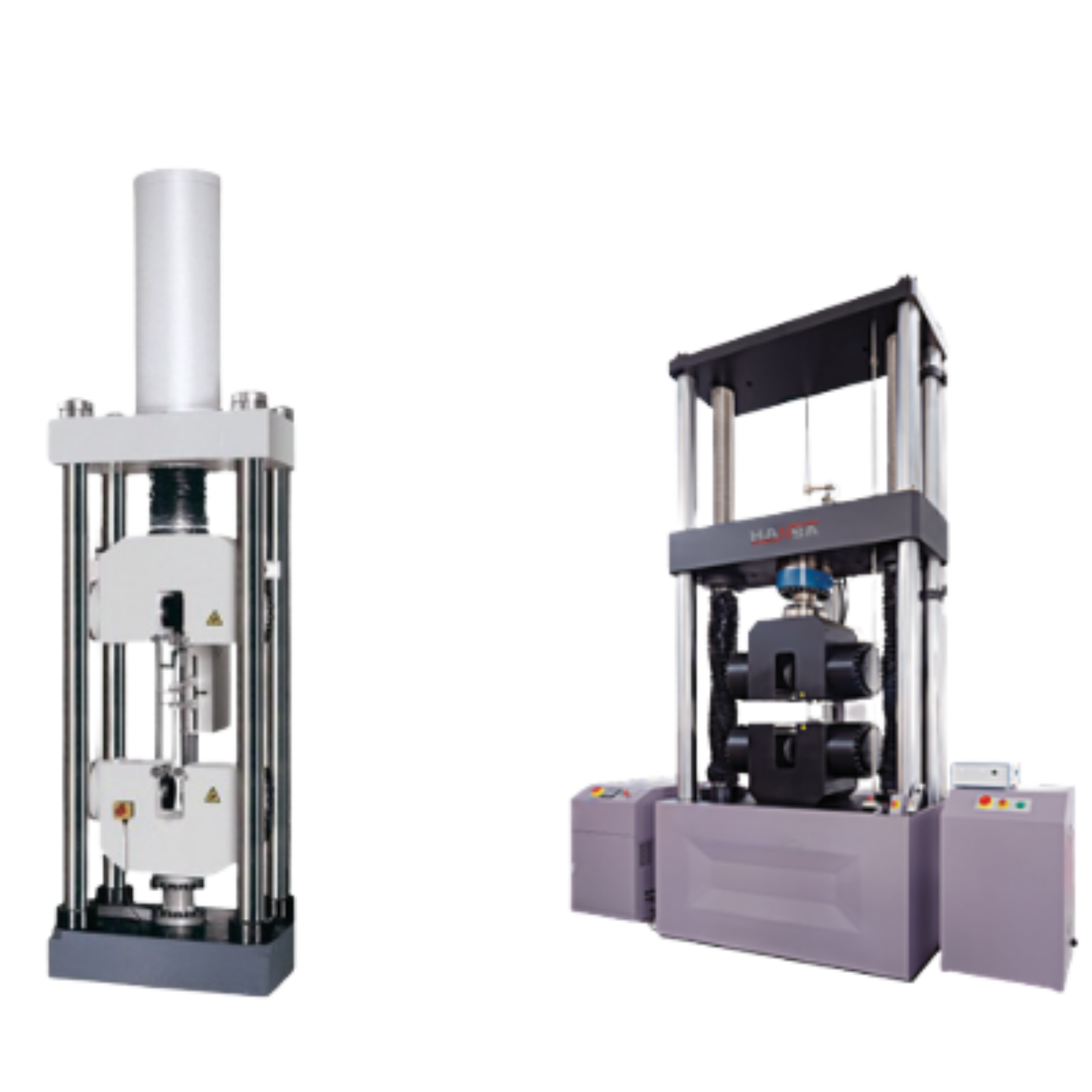

HTH Series
High Capacity Universal Testing Machines
HTH Series High Capacity Universal Testing Machines are available in capacities up to 3000 kN, delivering precise and reliable tensile, compression, and bending testing. Engineered for superior accuracy, durability, and performance in demanding applications.
Transforming Material Testing Technologies to meet modern day needs
Hansa Technologies offers a robust range of High capacity Universal Testing Machines designed to meet the demanding requirements of high-strength material and component testing. HTH series testing machines with force capacities from 400kN to 3000kN, these systems are ideal for evaluating metals, alloys, fasteners, structural components, and rebar couplers used in construction and infrastructure projects.
Built with superior mechanical strength and precision engineering, the High capacity UTM series ensures exceptional rigidity, minimal frame deflection, and stable performance even under extreme loads. The machines deliver accurate and repeatable results for tensile, compression, bending, shear, flexural, proof load, and rebar coupler tests.
Equipped with advanced servo-controlled drives and high-resolution load cells, the systems provide precise control and smooth operation. The intelligent digital control system with real-time data acquisition and user-friendly software allows easy test creation, monitoring, and analysis.
Features:
- 400kN to 3000kN for testing high strength materials.
- Rigid load frame design
- Advanced servo controlled drive system
- High-resolution load cells
- User-friendly software interface
- Complete range of Test Accessories
HIGH CAPACITY UNIVERSAL TESTING MACHINES
Parameters Sheet
| Model | HTH400 |
|---|---|
| Capacity (kN) | 400 |
| Min Speed (mm/min) | 0.01 |
| Max Speed (mm/min) | 500 |
| Effective Stretch Space (mm) | 600 |
| Distance Between Columns (mm) | 520 |
| Clamping Method | Hydraulic Automatic Clamping |
| Effective Compression Space (mm) | 800 |
| Width (mm) | 800 |
| Depth (mm) | 2250 |
| Height (mm) | 2500 |
| Weight (kg) | 2500 |
| Power Supply (VAC) | AC415V ±10%, 3kW, 50/60Hz, 3-Phase 5-Line |
| Load Accuracy | ±0.5% |
| Strain Accuracy | ±0.5% |
| Position Accuracy | ±0.5% |
| Load Frame | Four-Column Double-Screw Cylinder |
Important FAQs – HTH Series UTM
HTH Series High Capacity Universal Testing Machines
What is the HTH Series High Capacity Universal Testing Machine?
What testing capacities are available?
What types of tests can be performed?
Which materials can be tested?
What tests can be performed on HTC Series UTM?
Why choose Measure India's HTH Series?
Get in touch
“Need reliable Universal Testing Machine solutions? Get in touch with Hansa Technology for expert support, product information, and customized testing solutions.”
