HTS Series
Creep / Stress Rupture Testing Machines
Hansa Technologies offers Electro-Mechanical Universal Testing Machines (500N–600kN) ensuring precision, durability, and versatility for all material tests.
Transforming Material Testing Technologies to meet modern day needs
Hansa Technologies offers a comprehensive range of Creep / Stress Rupture Testing Machines designed to deliver unmatched precision, versatility, and durability. Having force capacities of 30kN, 50kN, 80kN & 100kN our machines cater to a wide spectrum of materials and applications from low force materials to heavy duty steel alloys testing at temperature up to 1200℃.
Built with state-of-the-art technology and robust engineering, these machines ensure consistent and repeatable results for Creep, Creep Rupture, Accelerated Creep, Stress Rupture, Stress Relaxation tests. The advanced load frame design minimizes deflection, while the high resolution digital control system provides accurate measurement and smooth operation.
Equipped with the latest features such as intuitive software interfaces, programmable test sequences, and real-time data acquisition, users can perform complex tests with ease and confidence. The machines are compatible with various grips, fixtures, and extensometers to suit diverse industry standards, including ASTM, ISO and more.
Whether in research laboratories, quality control departments, or educational institutions, Hansa’s Creep Testing Machines empower professionals to evaluate material properties with exceptional accuracy, enabling informed decisions for design, production, and safety.
Specification Sheet

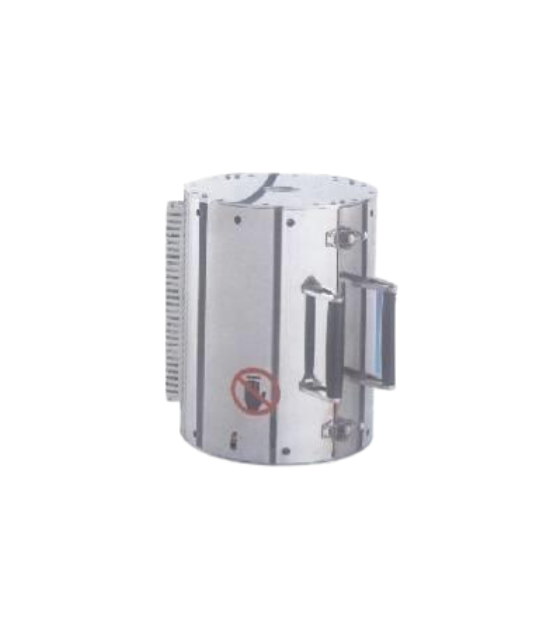

| Name | Description |
|---|---|
| Furnace type | Split |
| Control | Three-zone |
| Temperature range | 200~1200°C |
| Uniform temperature range | 200mm |
| Furnace inside dimension | Φ90×445mm |
| Outside dimension | Φ350×500mm |
| Power consumption | 5kW |
| Power supply | 1-phase, 230VAC ±10% |
| Temperature accuracy | 300~600 ±1°C 600~1200 ±2°C |
HPU360 Specification Sheet
| Name | Description |
|---|---|
| Rated flow (L/min) | 360 |
| Number of pump sets | 2 |
| Rated pressure (MPa) | 21 |
| Rated power (kW) | 180 |
| Tank capacity (L) | 1200 |
| Filtration accuracy (µm) | 3 |
| Length (mm) | 2130 |
| Width (mm) | 1600 |
| Height (mm) | 2100 |

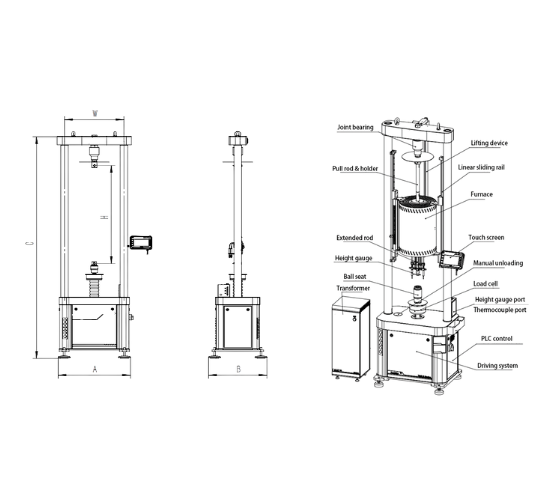

Parameters Sheet
| Model | HTC30 | HTC50 | HTC80 | HTC100 |
|---|---|---|---|---|
| Max force (kN) | 30 | 50 | 80 | 100 |
| Min force (N) | 300 | 500 | 800 | 1000 |
| Calibration accuracy | Class 0.5 | |||
| Force accuracy | ±0.5% | |||
| Lower pull rod speed | 0.01~110mm/min | |||
| Lower pull rod travel | 0~200mm | |||
| Test width (W) | 600mm | |||
| Grip distance (H) |
1100mm (with split type furnace) 1250mm (with closed type furnace with auto lifting) |
|||
| Power requirements | 1-phase, 230VAC ±10%, 50Hz | |||
| Dimension (mm), AxBxC |
710x520x2400 (with split type furnace) 710x520x2550 (with closed type furnace with auto lifting) |
|||
| Weight (kg) | 600 | |||

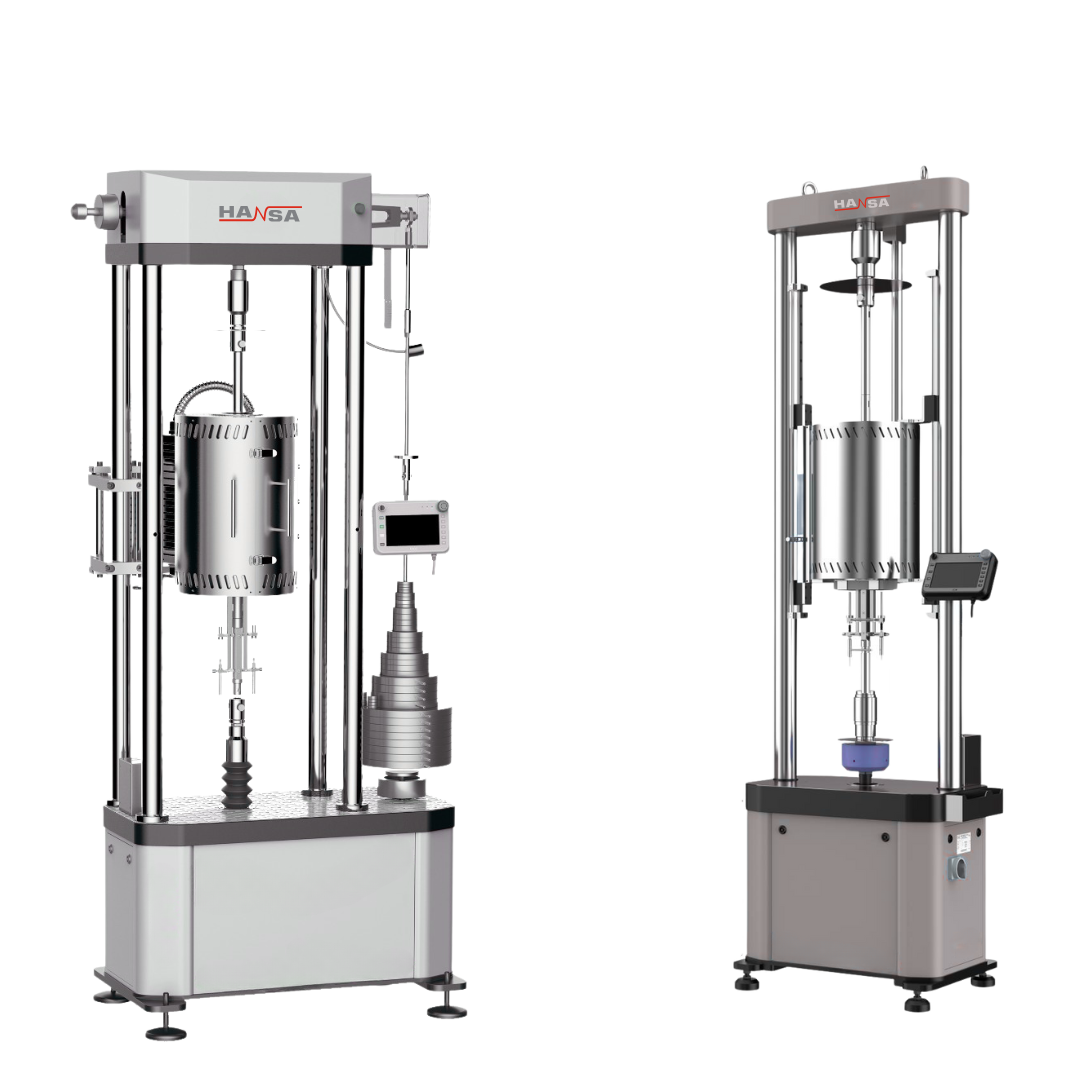

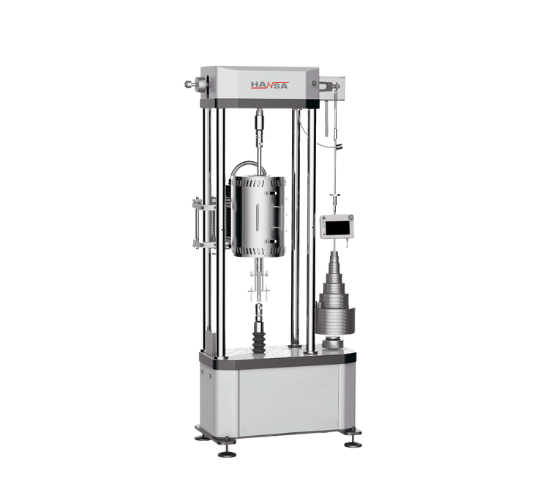

Creep / Stress Rupture Testing Machine
Hansa Technologies is a leading manufacturer and supplier of Creep & Stress Rupture Testing Machines, offering high-quality, reliable solutions for material testing. With over 20 years of expertise, we design and produce machines with force capacities from 30kN to 100kN and temperature capabilities up to 1200℃, suitable for a wide range of materials and industrial applications. Our machines feature advanced digital control systems, programmable test sequences, and real-time data acquisition, ensuring precise and repeatable results. Trusted by industries such as aerospace, automotive, power generation, research, and defense, Hansa Technologies provides complete end-to-end solutions, including manufacturing, supply, installation, and after-sales support.
Equipped with the latest features such as intuitive software interfaces, programmable test sequences, and real-time data acquisition, Hansa Technologies’ Creep & Stress Rupture Testing Machines allow users to perform complex tests with ease and confidence. These machines are compatible with various grips, fixtures, and extensometers to meet diverse industry standards, including ASTM and ISO.
They are widely used in aerospace, automotive, power generation, research, and defense applications. Hansa Technologies supplies and services these machines across major cities in India, including Mumbai, Delhi, Bangalore, Hyderabad, Chennai, Pune, and Kolkata, ensuring reliable support, installation, and after-sales assistance for all clients.
Specification Sheet
| Name | Type | Model | Capacity |
|---|---|---|---|
| Machine | Servo Controlled | HTC30 | 30kN |
| HTC50 | 50kN | ||
| HTC80 | 80kN | ||
| HTC100 | 100kN | ||
| Furnace | Split type | 300°C ~1200°C | |
| Closed type | 300°C ~1200°C | ||
| Machine controller | SIEMENS | ||
| Furnace Controller | Eurotherm or SIEMENS | ||
| Thermocouple | K | 0°C ~1000°C | |
| R | 0°C ~1200°C | ||
| Pull rods | IN 718 | 200°C ~1000°C | |
| CM 247 | 200°C ~1200°C | ||
| Specimen holder | IN 718 | 200°C ~1000°C | |
| CM 247 | 200°C ~1200°C | ||
| Height gauge | HEIDENHAIN | 12mm | |
| 30mm | |||
Important FAQs – HTS Series UTM
HTS Series Electro Mechanical Universal Testing Machines
What is a Creep / Stress Rupture Testing Machine?
What is the maximum operating temperature?
Are these machines compliant with international standards?
What force capacities are available in the HTC Series?
What tests can be performed on HTC Series UTM?
Which industries use HTC Series machines and where is support available?
